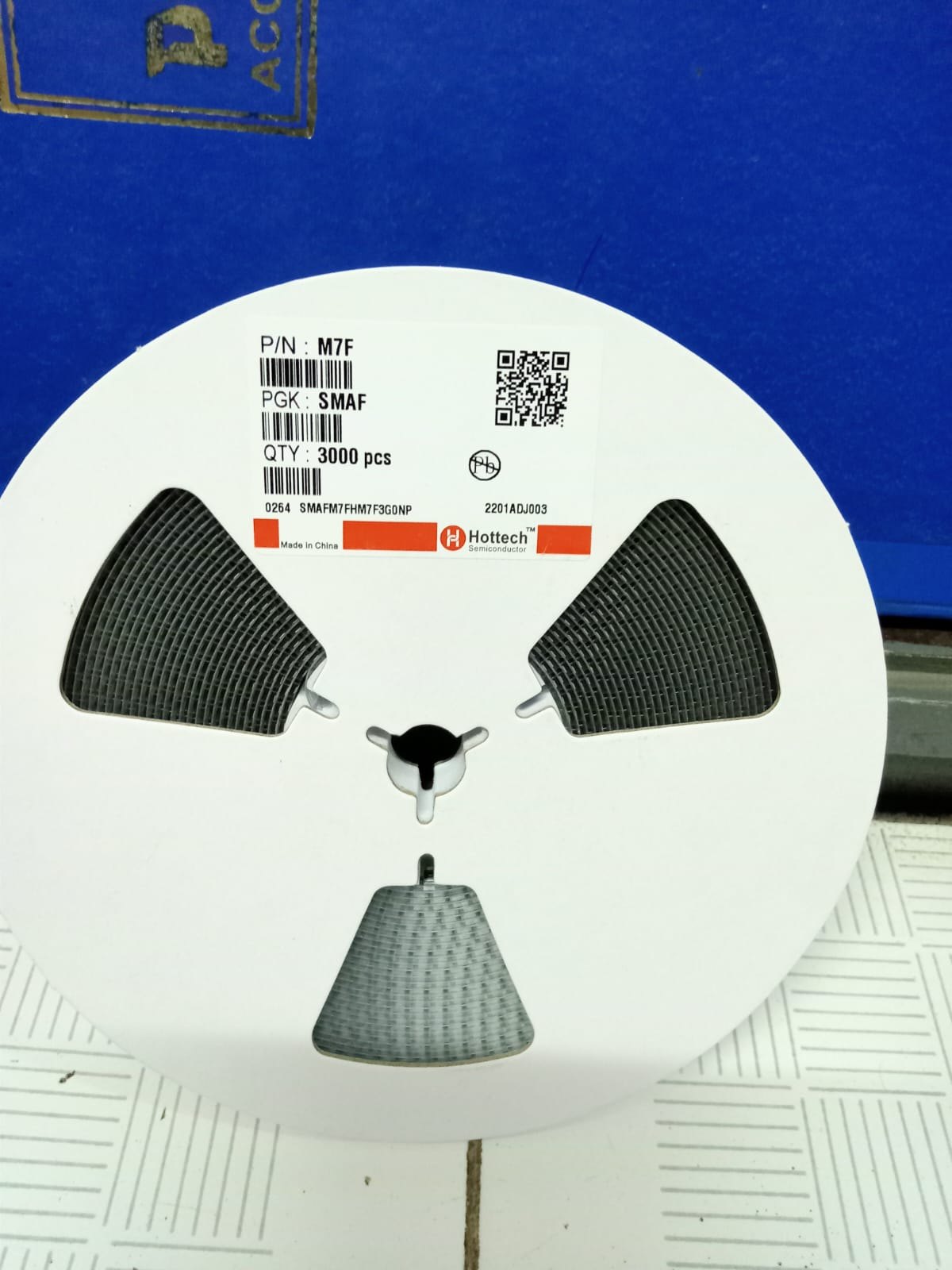

M7F HOTTECH

M7F Diode

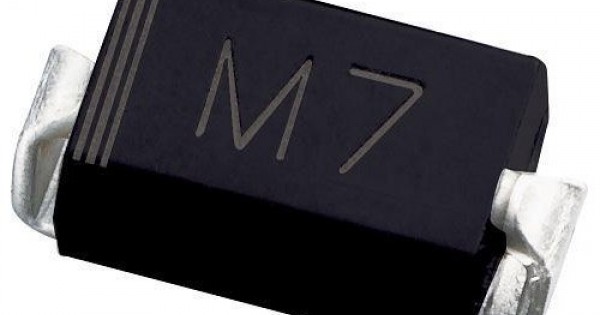

The M7F is a fast recovery rectifier diode designed for high performance as well as surface mounting technology (SMT). Typically, it is housed in the DO-214AC (SMB) package, which makes it the most commonly used component in various power electronics circuits requiring efficient, reliable rectification, and protection. The M7F diode, which is produced with a robust performance specification and compact design, is ideal for very low losses and fast switching and is designed for a variety of general-purpose applications.

Main Features:
Fast Recovery Time: The M7F has fast recovery time because it quickly switches between conducting to nonconducting state. It is especially effective in high-frequency circuits and appropriate for instant applications demanding very short delays in operation.
Moderate Current Handling: This is the reason it can handle up to 1A of continuous current, making it fit for moderate-power applications, keeping all efficiencies and low heat generation.
High Reverse Voltage: The M7F bears a peak repetitive reverse voltage V RRM of 100V; thus, it can function successfully in an elevated voltage scenario without getting broken down.
Low Forward Voltage Drop: The diode achieves low forward voltage drop, which decreases power loss in usage and further increases efficiency in the whole system by reducing heating.
Compact and Surface-Mount Package: The M7F is thus compact and space evaporating, packaged in the DO-214AC (SMB), which makes it ideal for high-density design applications in today’s electronic circuits.
Reliable Performance: The M7F diode is well known for its strength and longevity with service delivery in values that are reliable, even under extreme conditions.

Why M7F?
The M7F diode is one of the best solutions because it combines fast recovery with low forward voltage drop characteristics, but also boasts very high reverse voltage ability.Its compact SMB package makes it an excellent choice for space-constrained designs, while its robust features ensure reliable operation in high-speed and high-voltage applications. The M7F offers efficiency and long-lasting durability, making it an essential component in modern power management systems and other electronic circuits.
