NE555 SMD IC’S

NE555 timer

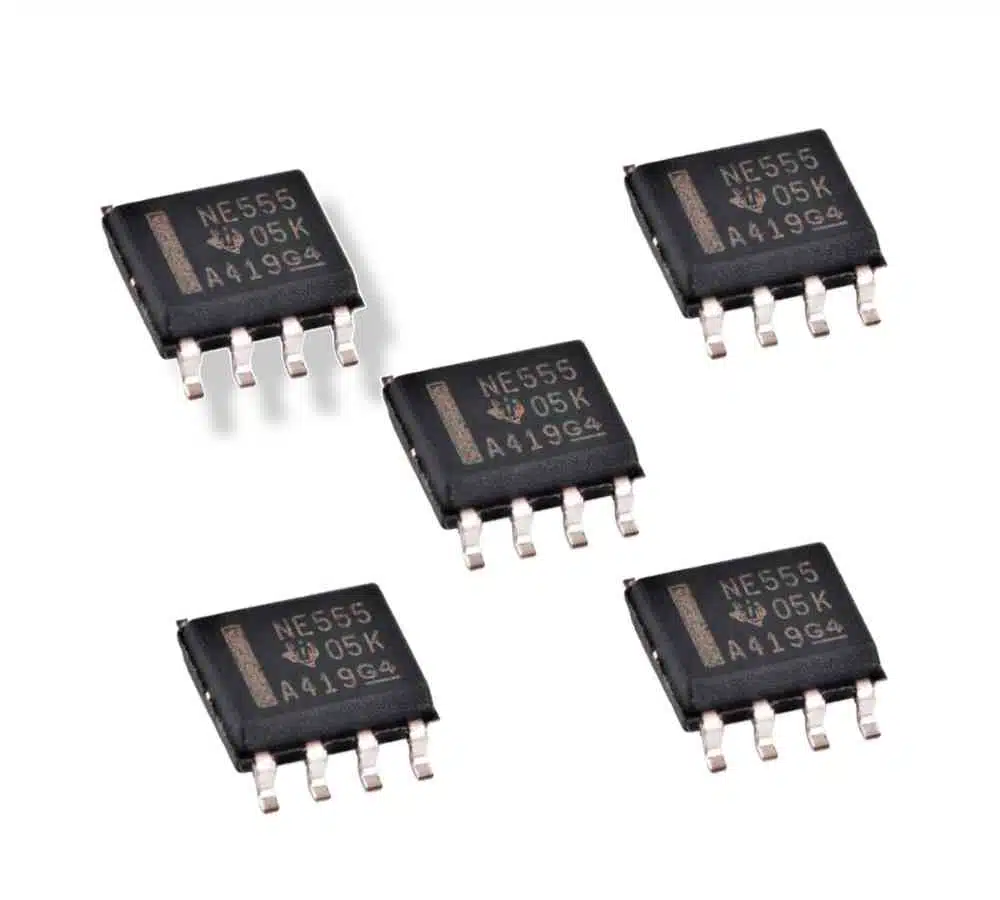

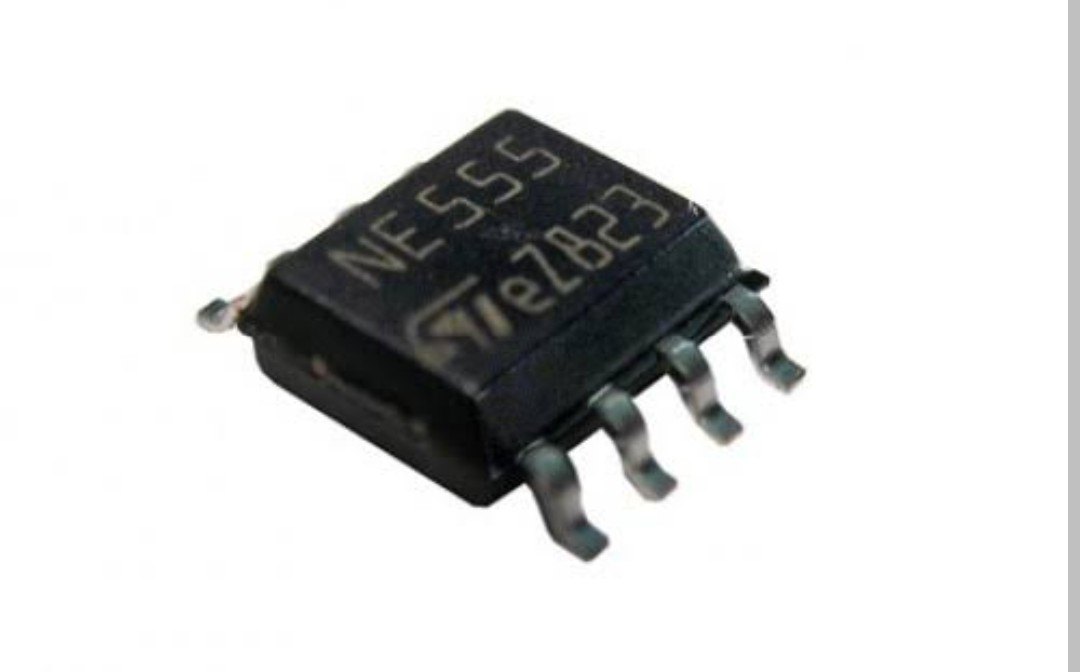

The NE555 SMD Integrated Circuit is a multi-functional Timer IC popular for precise timing, pulse generation, and oscillator designs. The NE555 contains the new surface mount device to cater for smaller circuit designs with the assurance of efficiency and ease of use in high density printed circuit boards.

Key Features

Wider Operating Voltage:  The device operates between 4.5V to 16V; hence it can work with different types of power supplies.
High Accuracy of Timing:  Allows for consistent and accurate timing function thus reliable use.
Multiple Modes:  Equipped with monostable (one shot) and unstable (oscillator) modes thus versatile for several uses.
Small SMD Package: Best for small configuration designs as well as for automatic assembling of components onto circuit boards.
Low Power Consumption: Capable of performing operations even when batteries are used.

Applications
The NE555 SMD IC has several uses among which are:

Timers: Integration of delays or precise segments in the circuits.
Oscillators: Producing clock pulses for digital devices.
Pulse Width Modulation (PWM): Controlling the speed of motors, the luminosity in LED and other output sources.
Frequency Generation: Constructing circuits for audio or RF purposes.
Pulse Generation: Generation of square waves for processing of signals or to make other devices work.

Working Principle
NE555 works by offering an external capacitor which is charged and discharged with the help of internal resistors that determine the time frame. The Timer IC has three functional pin outs which are the trigger, the threshold and the reset to allow for stable and repetitive generation of pulse or oscillation.

Advantages
The NE555 SMD IC is particularly appreciated for its flexibility, economy of implementation, and effectiveness in a wide range of tasks. Its original SMD package design allows easier integration of the NE555 SMD IC into modern electronics without any decrease in functionality.
