PMBT8550

PMBT8550

The PMBT8550 is a small yet highly reliable PNP transistor, designed for a variety of everyday electronic applications. Whether you’re working on a simple switching circuit or amplifying a weak signal, this transistor is a go-to choice for engineers looking for a compact and efficient solution. With its SMD (Surface Mount Device) package, it’s especially suited for modern, space-conscious designs where every bit of real estate on the circuit board counts.

Key Features

PNP Configuration: The PMBT8550 is a PNP transistor, which means it helps control the flow of current in a way that’s perfect for applications where the current needs to flow from the collector to the emitter.

Solid Voltage and Current Ratings: It can handle up to 45V across the collector-emitter and carry a 500mA current, making it reliable for a range of tasks from switching to low-power amplifications.

Low Power Loss: Thanks to its low saturation voltage, the PMBT8550 minimizes power loss, ensuring your circuits stay efficient and work longer without draining energy.

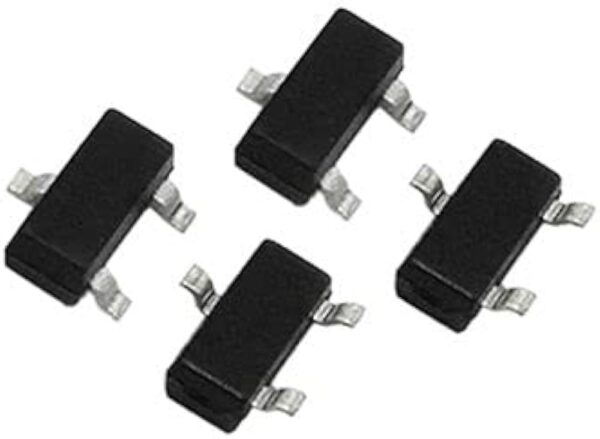

Small SMD Package: This tiny package makes it ideal for tight, compact designs, especially in mobile gadgets, consumer electronics, and even automotive systems where space is always at a premium.

Fast Switching Speed: The PMBT8550 is designed to switch quickly, making it a good choice for any circuit that requires rapid on-off transitions without delay.

Applications

The PMBT8550 is commonly used in:

Switching Circuits: It’s perfect for controlling the power in various devices and circuits, quickly turning them on and off as needed.

Signal Amplification: Whether it’s amplifying audio signals or boosting weak inputs, this transistor helps make weak signals stronger.

Motor Drivers: It’s also found in low-power motor driving circuits, helping to manage current flow effectively.

Signal Processing: The PMBT8550 is reliable for amplifying or processing signals in a wide range of electronic systems.

Why It’s Great

The PMBT8550 stands out for its compact size, efficient performance, and dependable functionality. Whether it’s switching, amplifying, or processing signals, this little transistor offers a lot of value for its size. It’s a staple in countless devices, from your phone to automotive systems, helping to ensure everything works smoothly and efficiently.
