S34 SMD Schottky Diode Uses – Amarnath Electronics

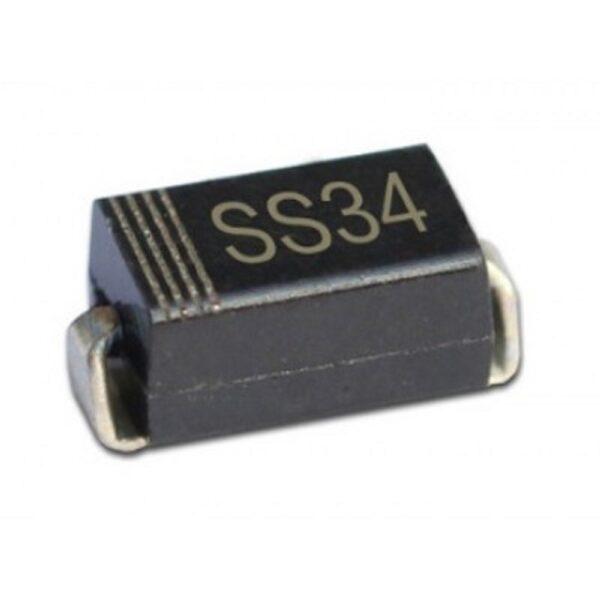

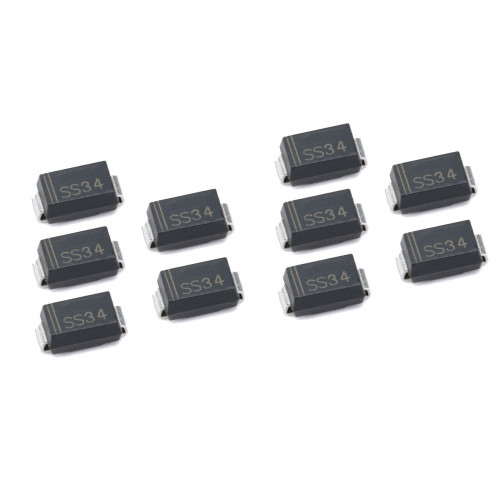

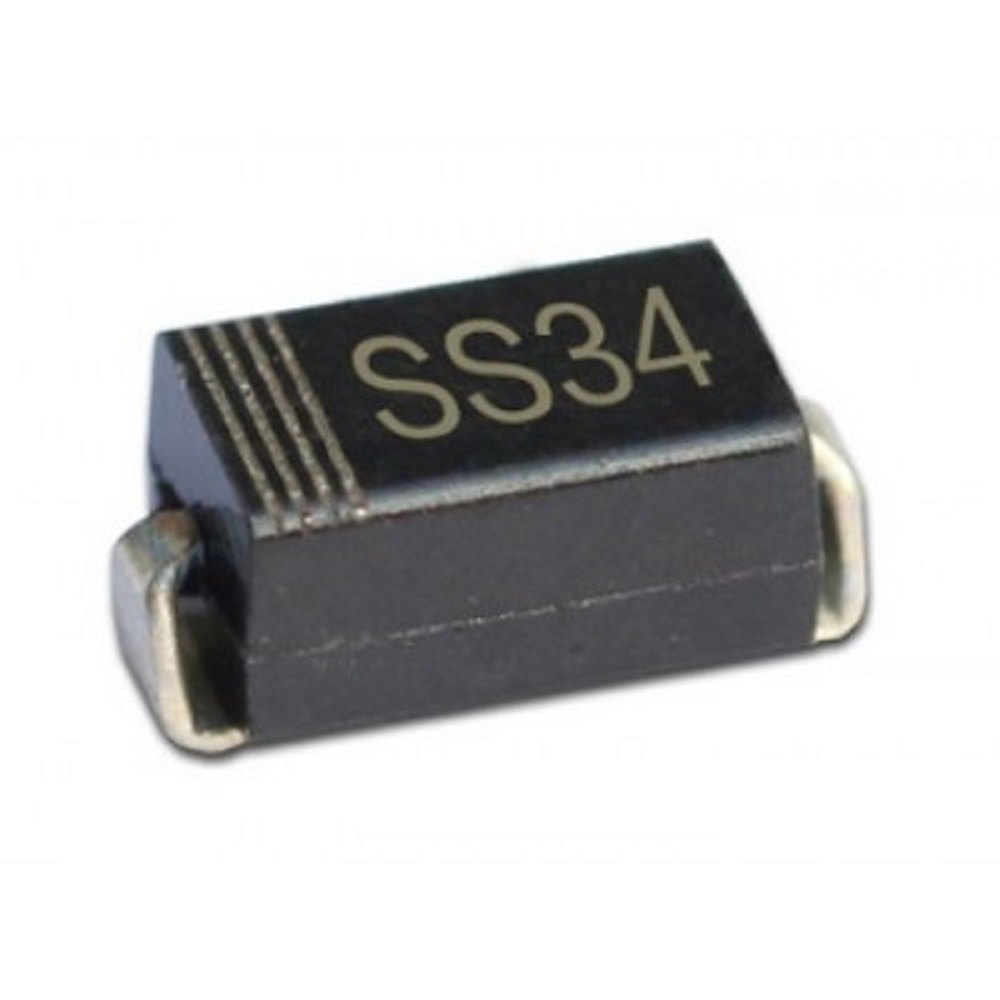

The SS34 is a 3A, 40V Schottky Barrier Rectifier Diode in an SMA (DO-214AC) Surface-Mount Package. It is known for its low forward voltage drop, fast switching speed, and high efficiency, making it ideal for power management and high-frequency applications.

---

Key Features of SS34 SMD Schottky Diode

• High Current Capability: Supports up to 3A continuous forward current.
• Low Forward Voltage Drop (VF): Typically 0.5V – 0.55V at 3A, reducing power losses.
• Fast Switching Speed: Enables high-frequency operation, improving circuit efficiency.
• Reverse Voltage Rating: Can withstand up to 40V reverse voltage.
• Thermal Stability: Designed for reliable operation at high temperatures.
• Compact SMD Package (SMA/DO-214AC): Ideal for space-constrained PCB layouts.

---

Applications and Uses of SS34 SMD Schottky Diode

1. Power Supply Rectification

• Converts AC to DC efficiently in switch-mode power supplies (SMPS), adapters, and chargers.
• Used in full-wave and half-wave rectification circuits due to its fast switching and low voltage drop.

2. Reverse Polarity Protection

• Prevents damage to electronic circuits when power supply polarity is accidentally reversed.
• Essential in battery-powered devices, automotive electronics, and industrial applications.

3. DC-DC Converters

• Used in step-up (boost), step-down (buck), and buck-boost converters for high efficiency and minimal heat dissipation.
• Commonly found in portable electronics, laptops, and solar charge controllers.

4. Freewheeling Diode in Inductive Loads

• Acts as a freewheeling diode in motor control and relay circuits, preventing voltage spikes.
• Protects MOSFETs, BJTs, and other sensitive switching components in PWM motor drivers.

5. Battery Chargers and Power Banks

• Used in Li-ion and lead-acid battery chargers to prevent reverse current leakage and improve charging efficiency.
• Helps reduce power losses in fast-charging circuits.

6. LED Drivers and Lighting Applications

• Used in LED driver circuits to maintain efficiency and stability.
• Ensures constant current supply to LEDs in automotive lighting, display panels, and indicator lights.

7. Solar Panel Applications

• Prevents reverse current leakage in solar power systems, improving efficiency.
• Used in MPPT (Maximum Power Point Tracking) charge controllers and solar inverters.

8. Automotive Electronics

• Found in ECUs (Engine Control Units), infotainment systems, dashboard circuits, and sensor modules.
• Ensures stable power delivery and protects components from voltage spikes.

9. Clamping and Protection Circuits

• Used in TVS (Transient Voltage Suppression) circuits to protect sensitive components.
• Helps in surge protection and voltage regulation in high-speed switching applications.

10. RF and High-Frequency Circuits

• Due to its fast response time, the SS34 is used in RF circuits, communication systems, and signal processing applications.
• Works effectively in high-speed digital circuits.

---

Conclusion

The SS34 SMD Schottky Diode is a high-efficiency, low-loss diode suitable for a variety of power electronics, protection circuits, and energy-efficient applications. Its fast switching, low forward voltage drop, and high current handling make it ideal for power supplies, DC-DC converters, battery chargers, and automotive electronics.

At Amarnath Electronics, we provide high-quality SS34 diodes at competitive prices to ensure optimal performance and reliability in your electronic desig
